Universal Heavy Duty Hydro Assist Ram 6 Inch Trail Gear

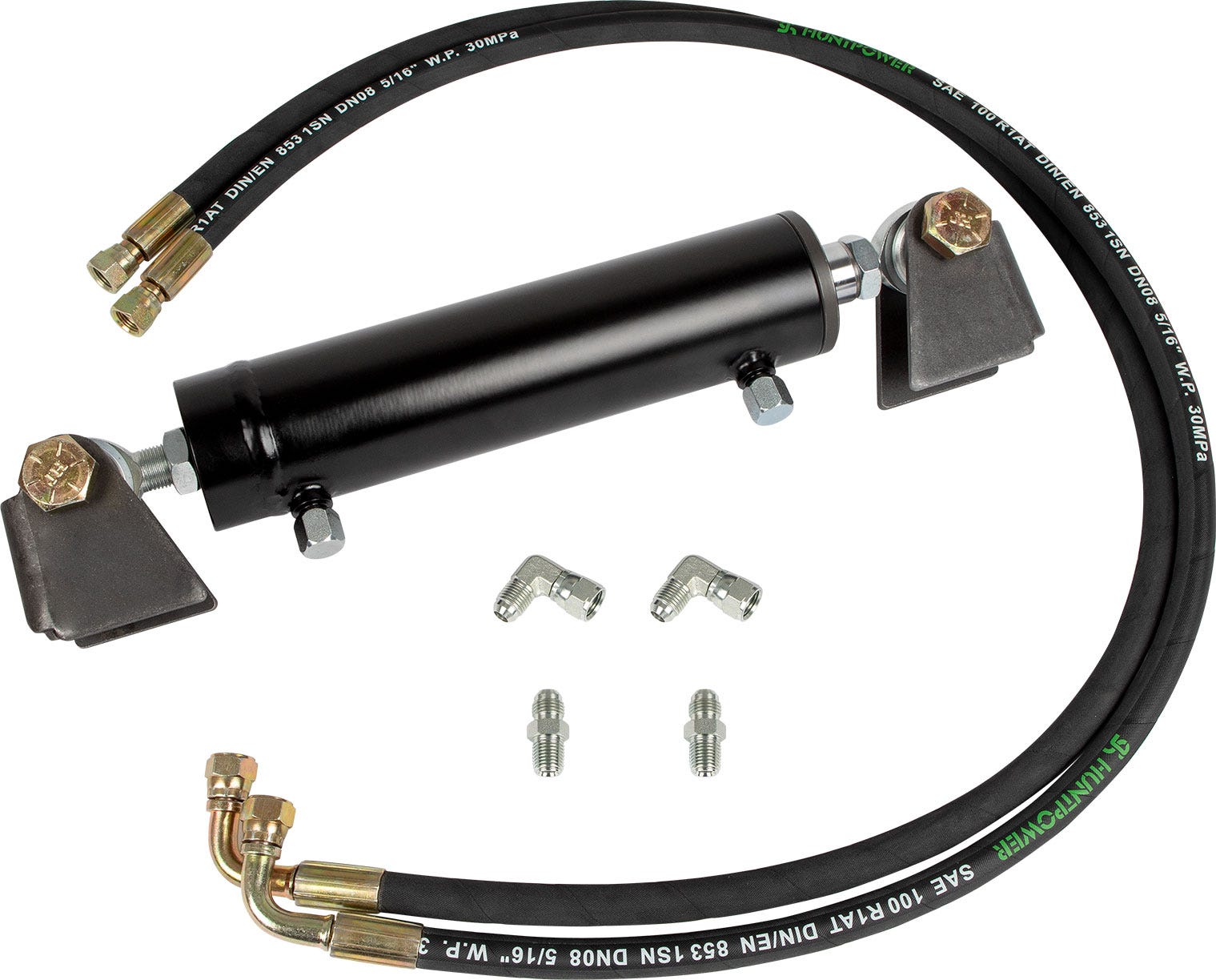

Our universal application kit features a heavy-duty single-ended hydraulic ram in your choice of 6 inch or 8 inch stroke. Our specially designed ram features a 1-1/8 inch rod for maximum strength and a 2-1/4 inch diameter bore for maximum steering force. The mounting brackets provided have fitments made from 1/4 inch thick-formed steel.

Brackets fit most applications. Our specially formed, easy-to-install brackets make installing our kit a breeze. Brackets may require additional cutting and/or grinding for some applications. Hardware, number 6 JIC hoses, and steering box fittings are included. We recommend a 6 inch stroke for most Toyota applications and an 8 inch stroke for Dana applications.
Features:

• Universal Heavy Duty Hydro Assist Ram 6 Inch

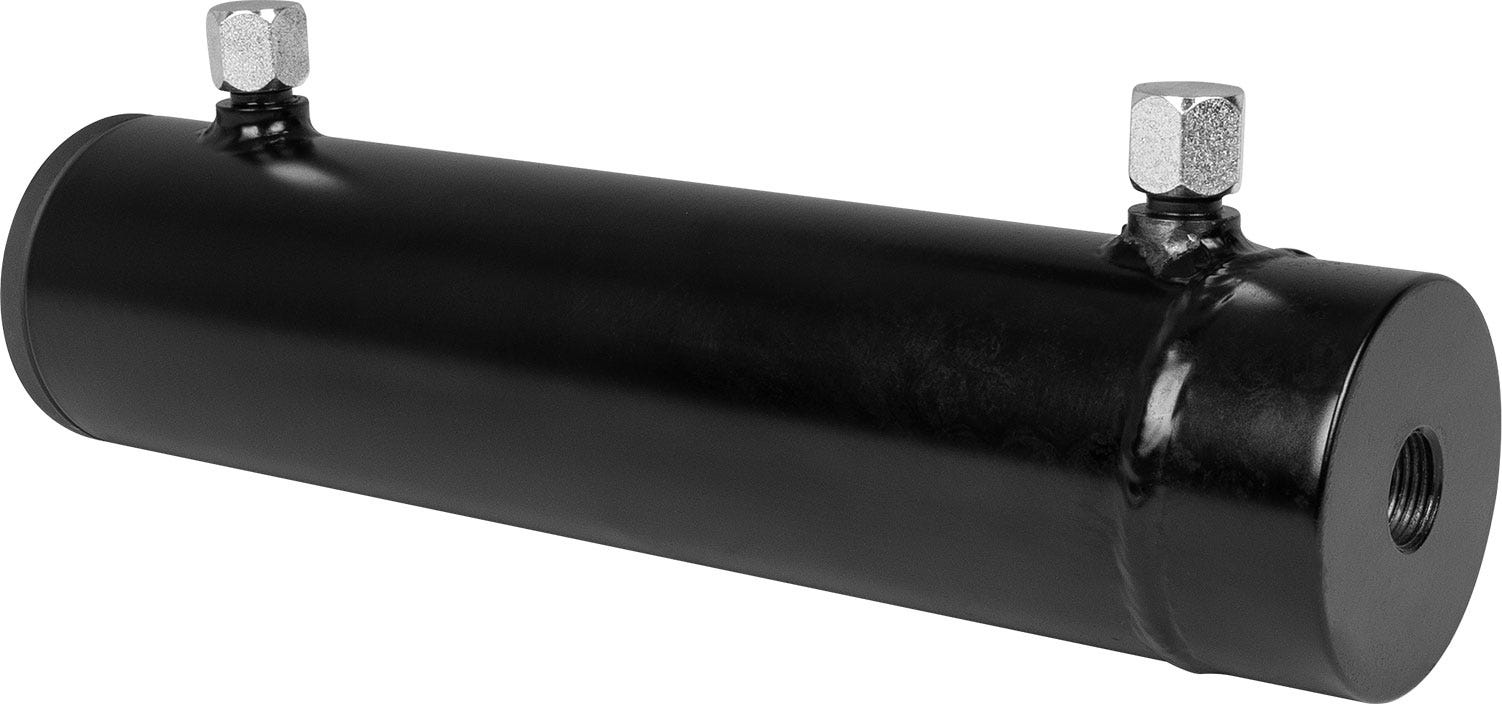

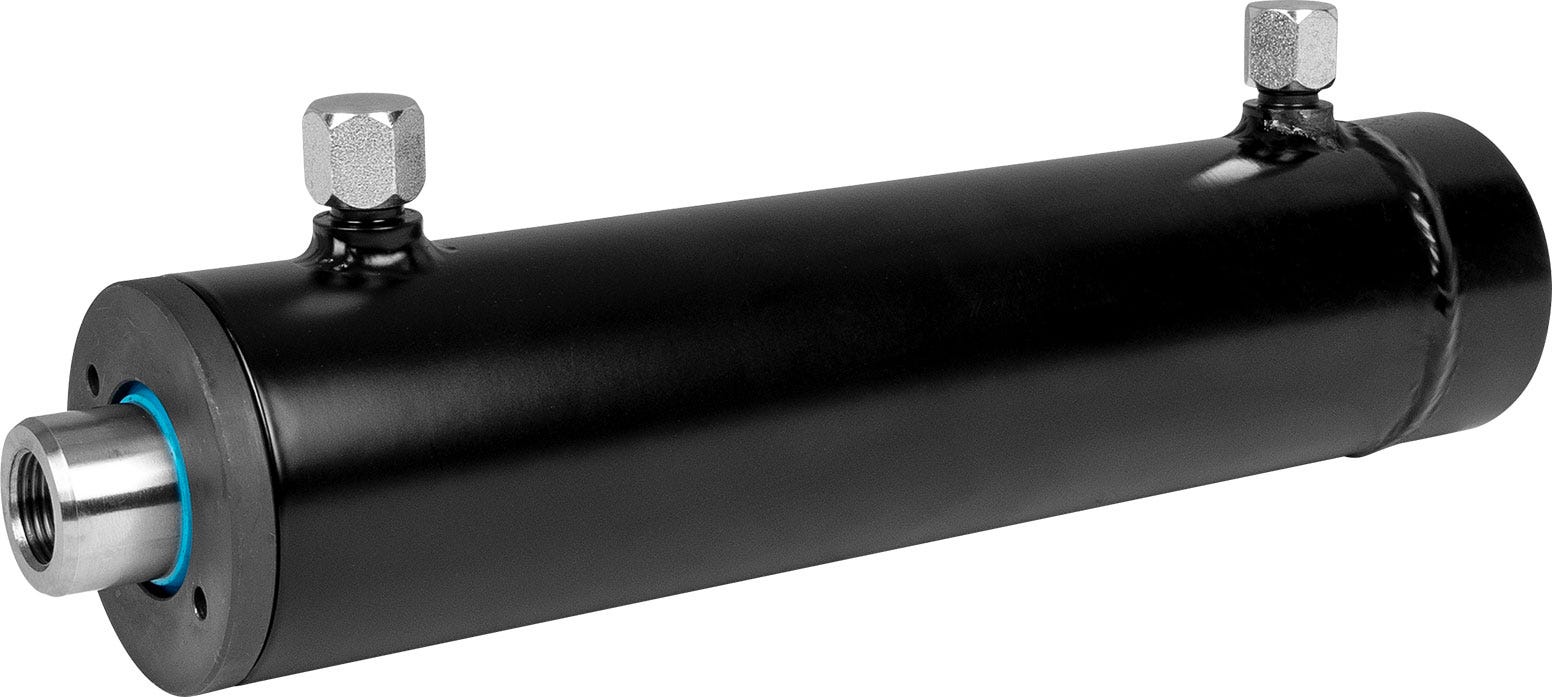

• Heavy-Duty 6 inch stroke single-ended hydraulic ram with high temperature inner and outer seals.
• 1-1/8 inch diameter rod for maximum strength.
• 2-1/4 inch ram bore.

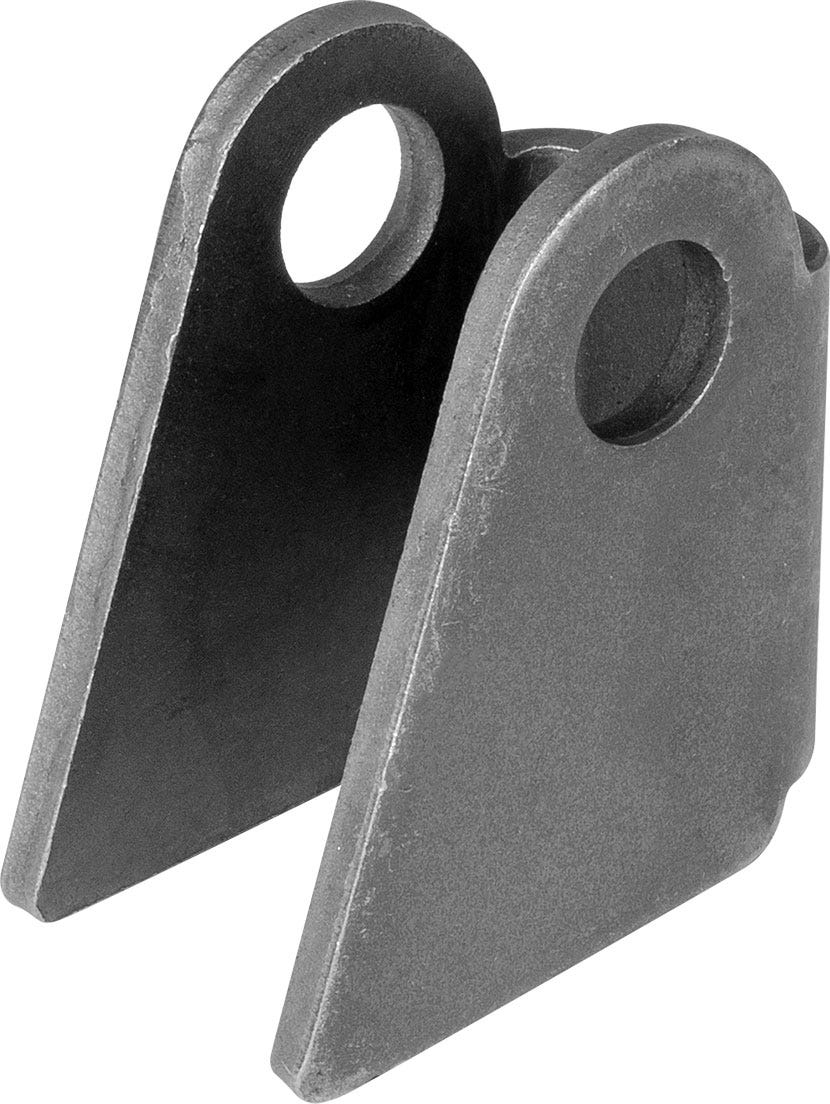

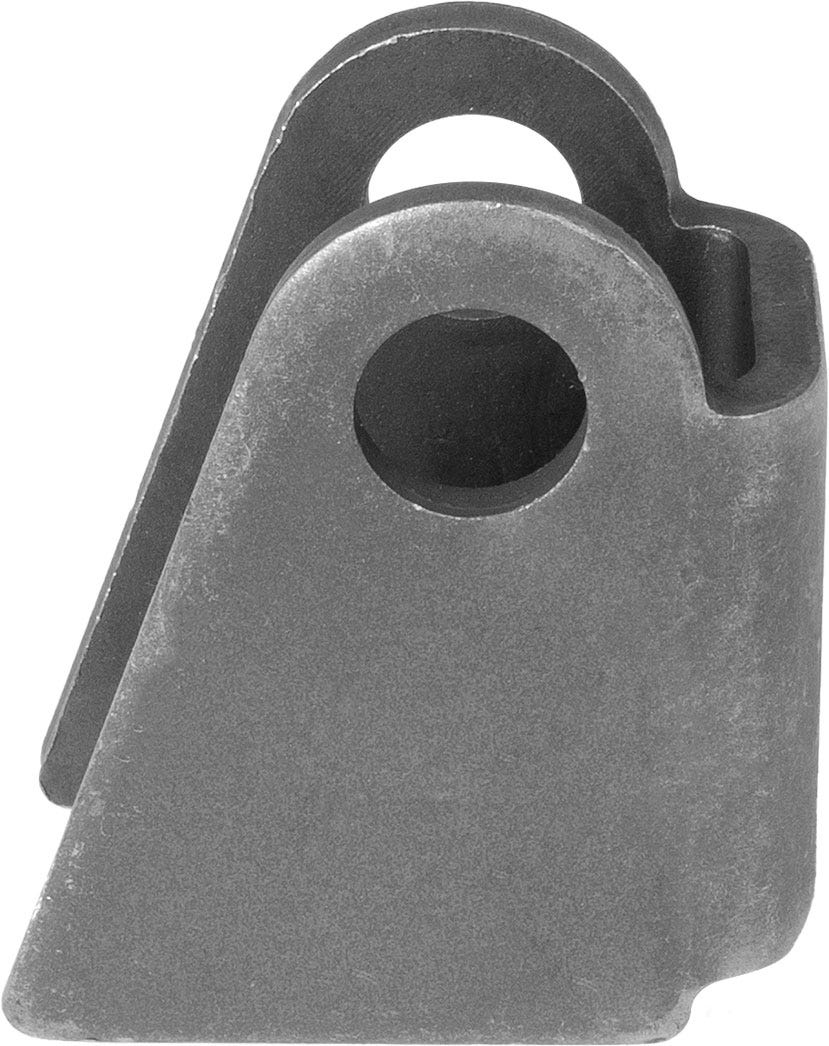

• Brackets are formed from 1/4 inch thick steel and fit most applications (additional cutting and/or grinding may be required for some applications).

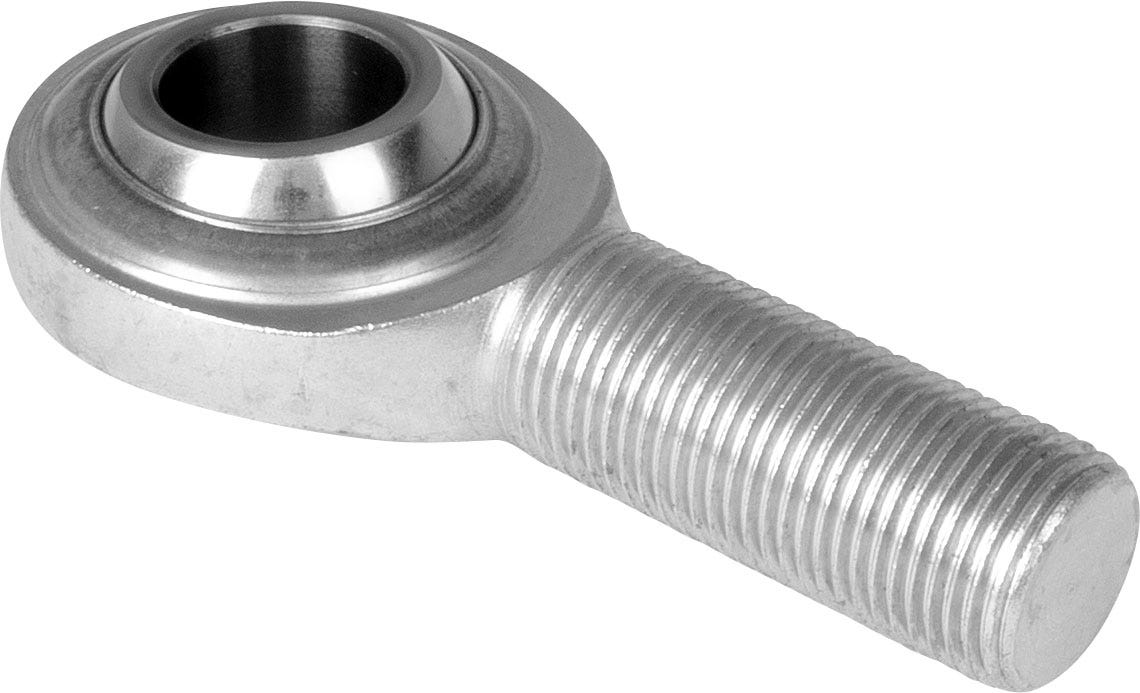

• 3/4 inch rod ends with jam nuts

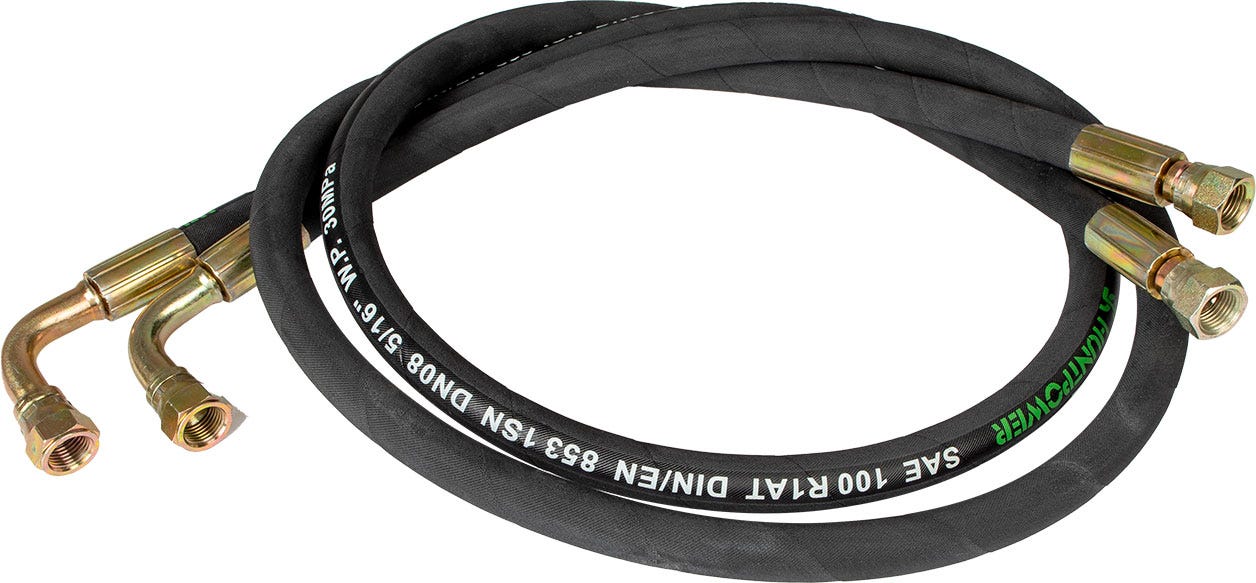

• (2) number 6 JIC Hoses

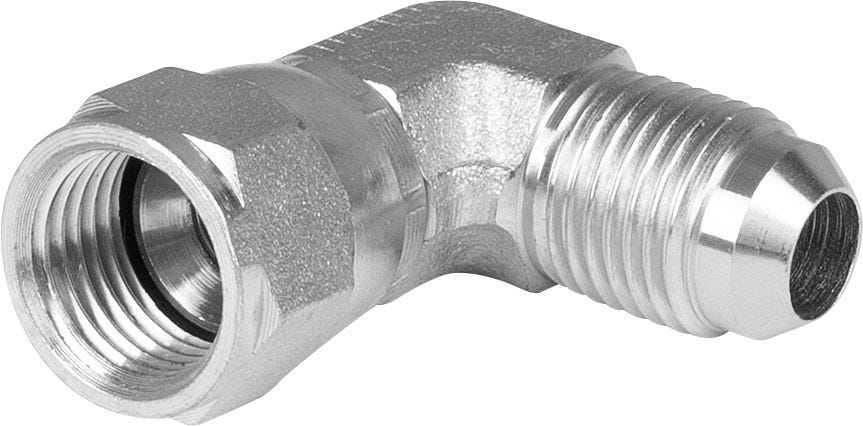

• (2) number 6 JIC 90-degree elbows

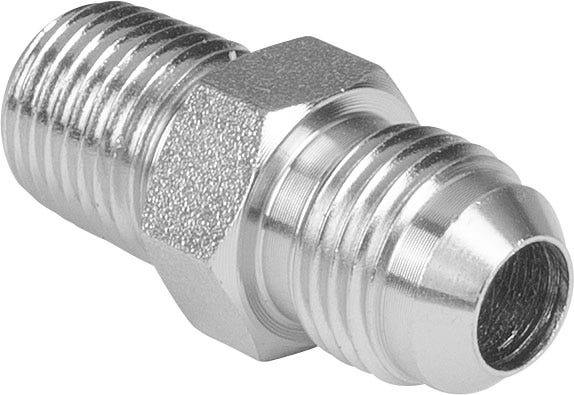

• (2) 1/4 inch NPT x number 6 JIC steering box fittings
• Mounting hardware included
• Force with 1650 psi pump
• Shaft side (retraction) = 4920 lbs (2232 kg)
• Non-shaft side (extension) 6560 lbs (2976 kg)

Note: Use only standard power steering fluid with this product. The use of ATF fluid, semi-synthetic fluid, or full synthetic fluid is not recommended and will void the warranty. Required additional components: High steer kit, steering box drilled and tapped for hydro assist.
