Suzuki Samurai Full Time 4WD Drive Flange Kit Low Range Off Road

A Simple Inexpensive Upgrade for Dedicated Trail Rigs

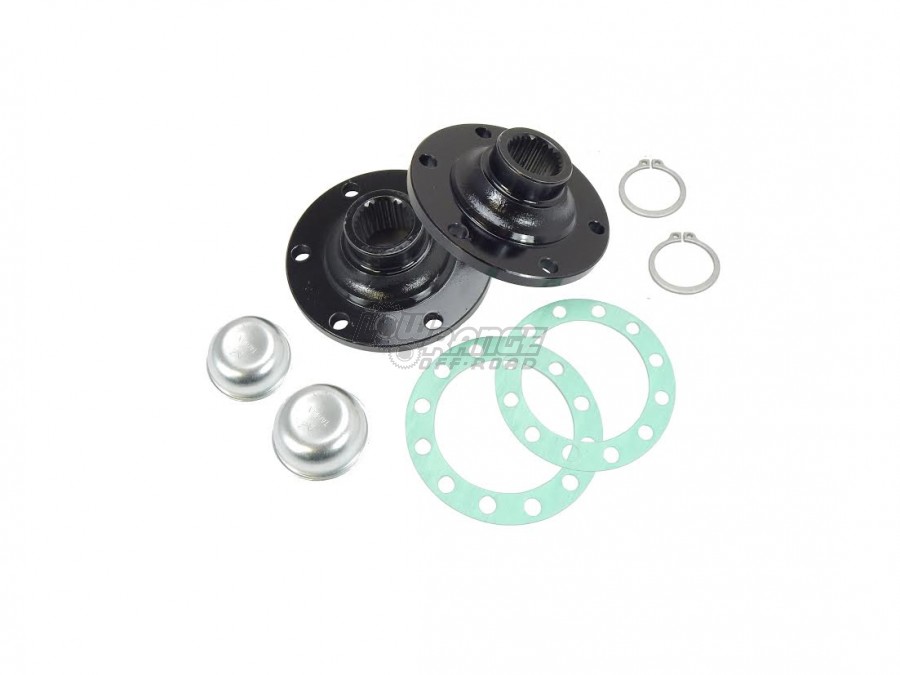

Drive flanges are used in place of selectable locking hubs to achieve a full time locked position. The Samurai was never sold with a full time 4wd option but the SJ410 was. SJ410 drive flanges can be used on the Samurai. This kit includes SJ410 drive flanges, new inner gaskets, snap rings, and dust covers.

A pair of replacement locking hubs will cost nearly 3x more than this drive flange kit. With no moving parts, drive flanges are stronger than locking hubs and require no maintenance.

Are drive flanges right for you?

We want to be clear, these are not for everyone. If your Samurai is driven on the street you will want selectable locking hubs to disengage the front axle to reduce vibrations. With a full time 4wd conversion, the front axle shafts, ring and pinion gears, driveline, and some t-case parts will spin whenever the front wheels are rotating. Samurais have a poor front driveline angle which is usually made worse after lifting. This is normally not a major problem because the front driveline is only used at slow speeds but can become a headache at high speeds.

• Steering is more difficult with a front locker when the hubs are locked in. Despite what some claim, this is true to some degree even in 2wd. With hydro-assist steering installed we do not notice a difference in steering difficulty; with standard power steering however, we prefer to unlock hubs until 4wd is needed.
• For the Samurai that sees almost exclusive trail use, drive flanges are simple to install, inexpensive, and durable. If you have been leaving your hubs in all the time and finally snapped a hub gear this kit is a must have.
• These also make excellent trail spares. Not recommended for on-road use.

• Application: 1986-1995 Suzuki Samurai
