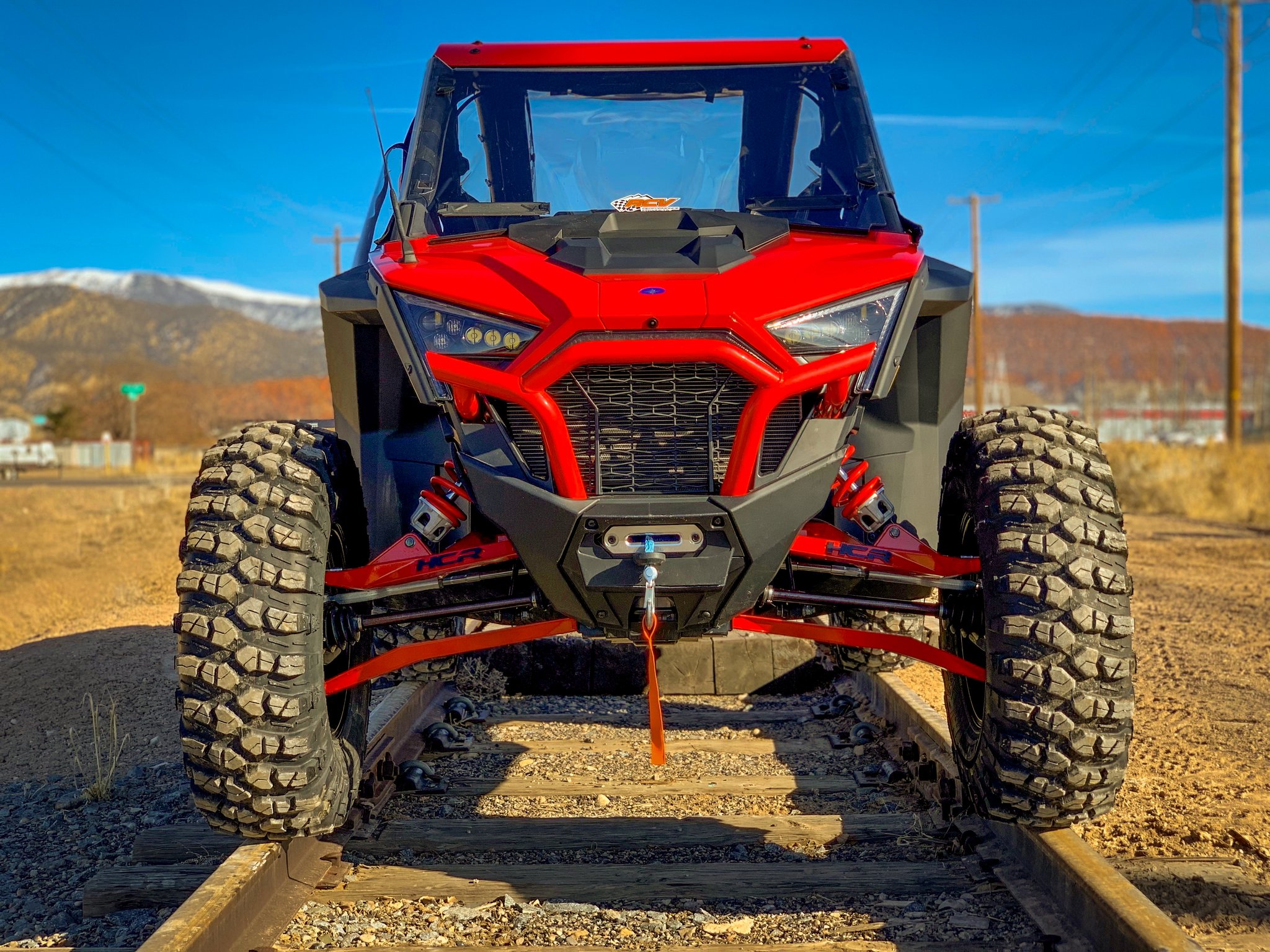

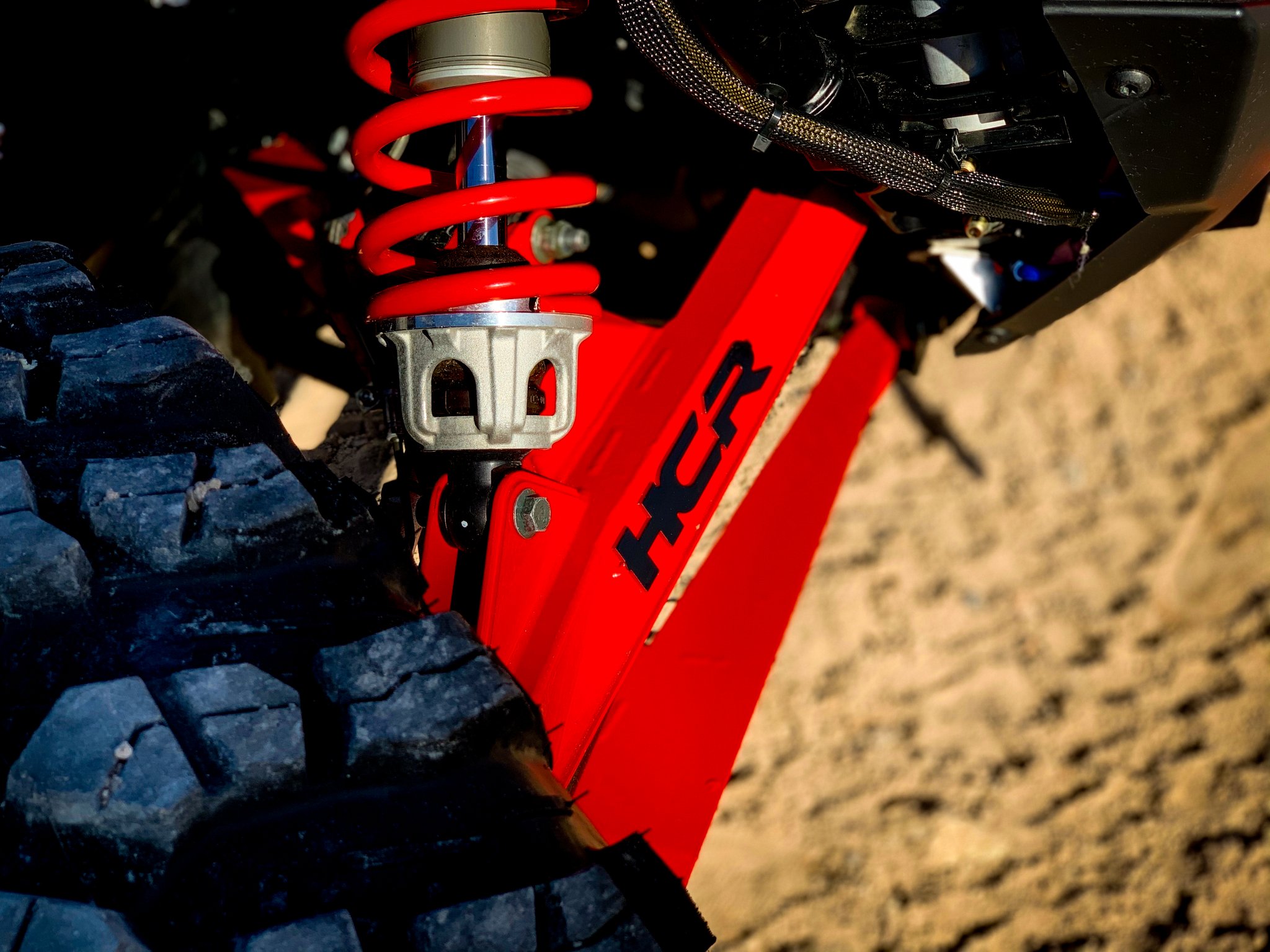

Polaris RZR Pro XP OEM Replacement A-Arms HCR Racing

HCR's proprietary billet, slot and tab design and honeycomb boxed arms are built to withstand the beatings of rigorous off-road riding whichachieving the optimal combination of strength and appeal.

Every external weld is an internal platestructured into the design. While the cost-effective approach is to run tube ends for ball joints, all HCR kits run a 4130 heat treated billet end allowing all internal and external plating to be attached to this billet eliminating a potential weak point.

Billets are available in both balljoint and spherical applications. The custom alloy used to manufacture every HCR kit is 30 Percent stronger in tensile and yield strength compared to 4130 Series chromoly.

This HCR custom material endures several processes and is hardened for better wear resistance and overall strength. RZR-07300-1

Features:

• Laser Cut Construction for prescise fit and finish
• CNC'd Chromoly mounting points for increased integrity
• High Clearance Boxed Front A-Arm Design0.500 inch added ground clearance
• Each piece is Tig Welded by hand for strength and aesthetics
• Reuse of OEM ball joints to maximize low speed steering ease and; smooth travel with less maintenance
• 100 Percent Proudly Made in the U.S.A
• 100 Percent Bolt-on installation using factory mounting points
• Larger front tube mounts are 1.25 in diameter with Delrin bushings for increased strength and durability

Kit Contains:

• Shipped Raw
• 4 Front A-arms
• Hardware
• Install Guide

Note: You will re-use OEM ball joints in the front A-arms unless you have ordered OEM equivalents, or if you order the Spherical Bearing upgrade.
