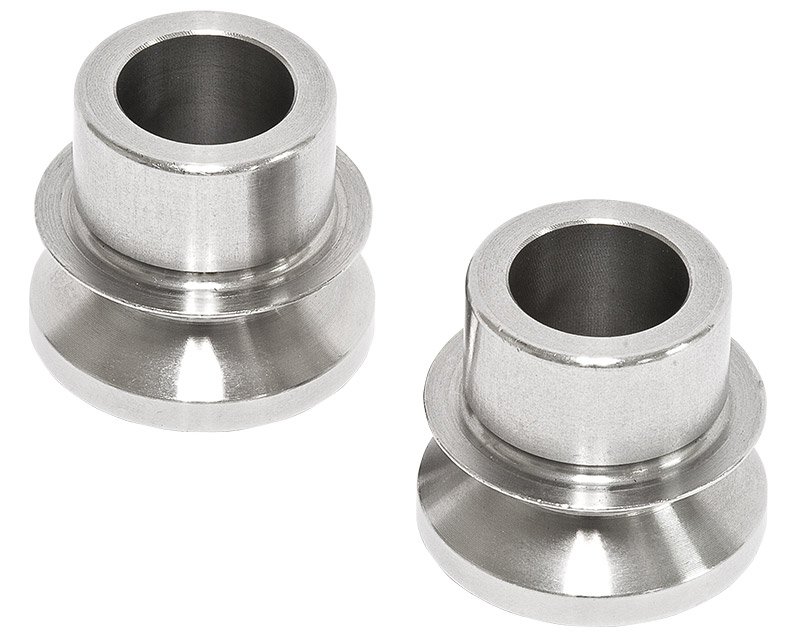

Misalignment Spacers 3/4 Inch Trail Gear

Misalignment Spacers. High misalignment spacers increase misalignment by continuing the spherical diameter of the ball and allowing the edge of the ball to rotate into the body of the rod end.

This allows greater articulation, more suspension travel, and longer life of the rod end. The inner diameter of the high misalignment spacer is smaller than the inner diameter of the rod end, so a smaller bolt is required.

We have listed a conversion chart that will allow you to easily see what size bolt you will need when using our misalignment spacers. Machined from 303 stainless steel.

Standard misalignment spacers are only used when the width of the ball is too narrow for the bracket it is being used with.
Specs:

• Warranty: 12 Month Limited Warranty
• Sold As: Pair
• Material: Stainless Steel
• Finish: Bare
• Color: Grey
• Angle: 34.0 Degrees
• Bore Size: 0.75 Inch
• Bolt Size: 0.5 Inch
• Mounting Width with Rod End: 1.75 Inch
