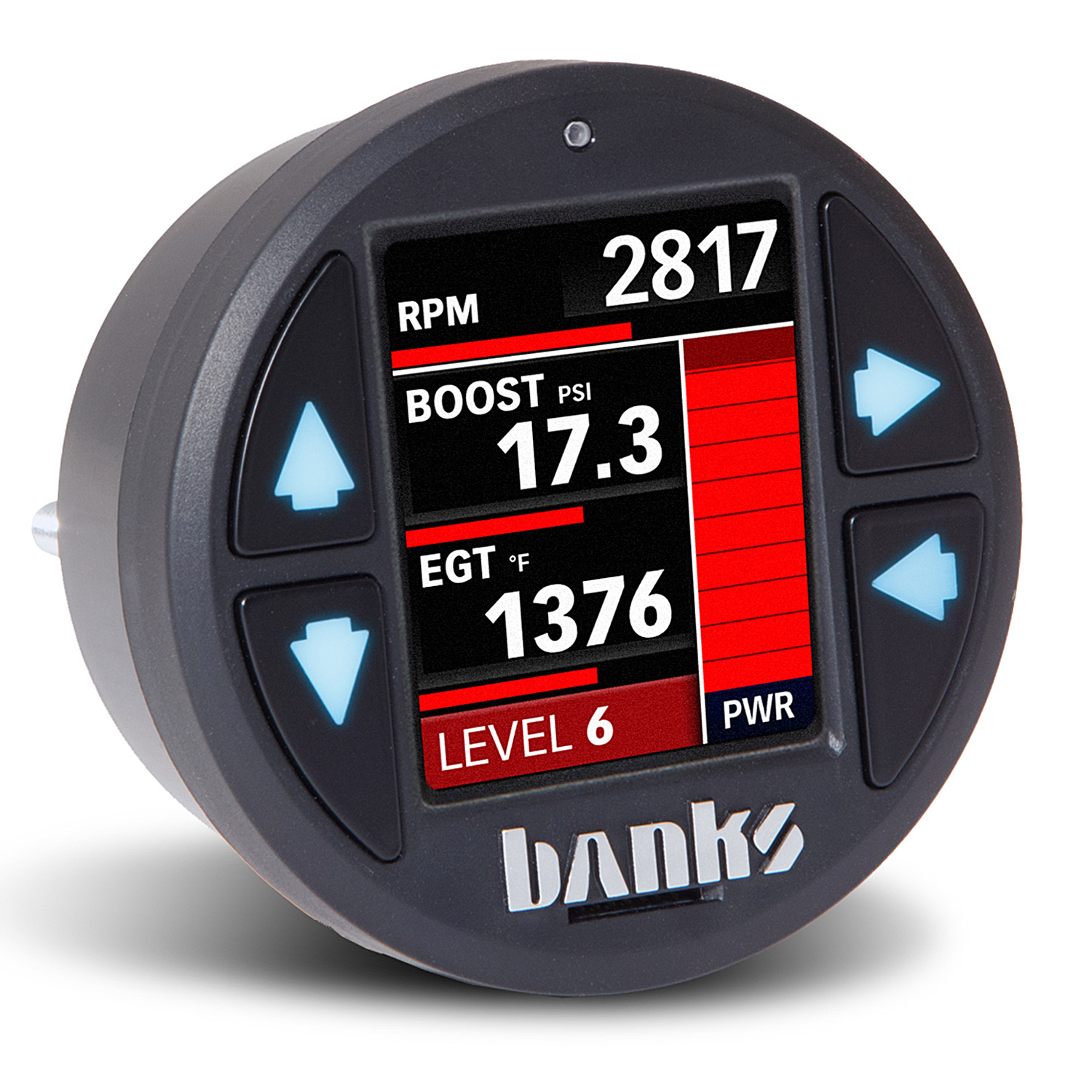

iDash 1.8 SuperGauge Banks Power

Upgrade and control your PedalMonster. Display 2-8 values with over 300 parameters available, including up to 80 OBDII Mode 01 values. View Data your OEM dash does not display and accurate values your gauges filter. Includes patented OBDII Density (exclusive to Banks). Log up to 20 min/max values. Built-in Shift/RPM Light. Connect multiple gauges. Auto-Dimming Feature.

Banks iDash is the smallest, most powerful plug-n-play OBD-II monitor and control interface on the market. It now seamlessly integrates with the Banks Six-Gun/EconoMind Tuner and/or SpeedBrake. Owners of these BanksBus I systems can easily add or upgrade to an iDash SuperGauge or iDash DataMonster by using the supplied easy-install kit.

Key Features

• Control your PedalMonster (not incl.)

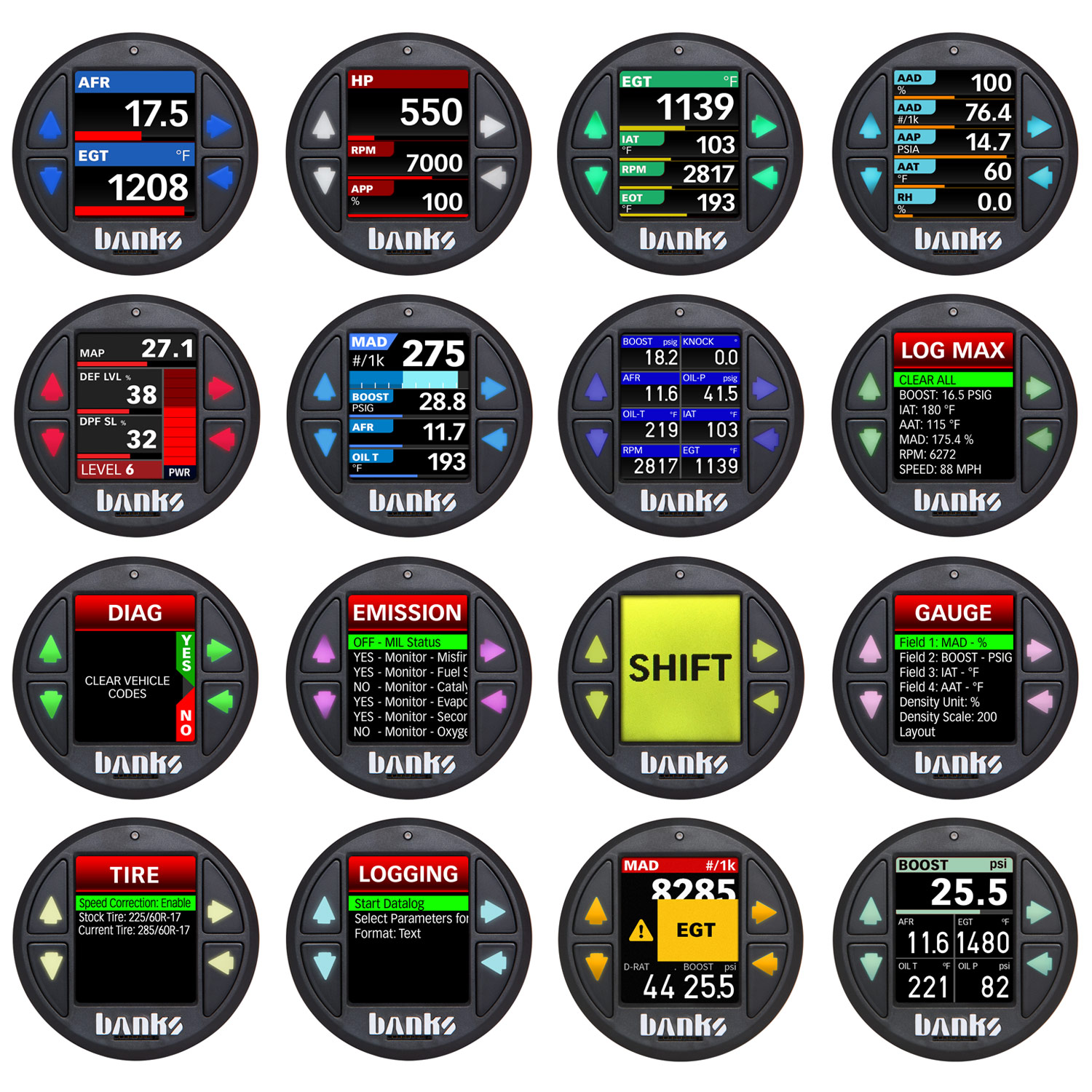

• Display 2-8 values
• Read up to 80 OBDII Mode 01 values
• Over 300 parameters available
• View Data your dash does not display
• Displays accurate values your OEM dash gauges filter
• Includes patented OBDII Density (exclusive to Banks)
• Log up to 20 min/max values
• Built-in Shift and RPM Light

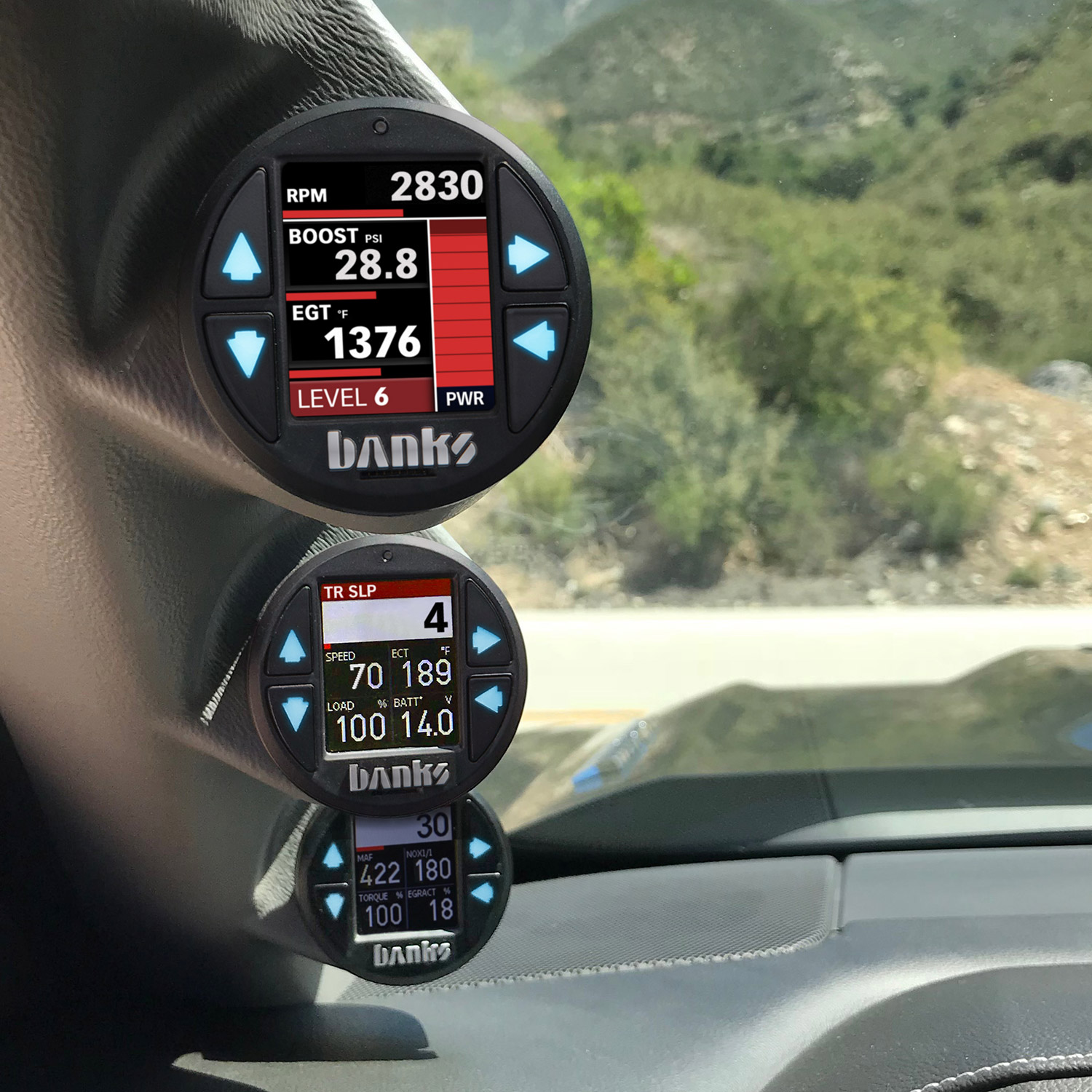

• Connect multiple iDash gauges
• Auto-Dimming Feature

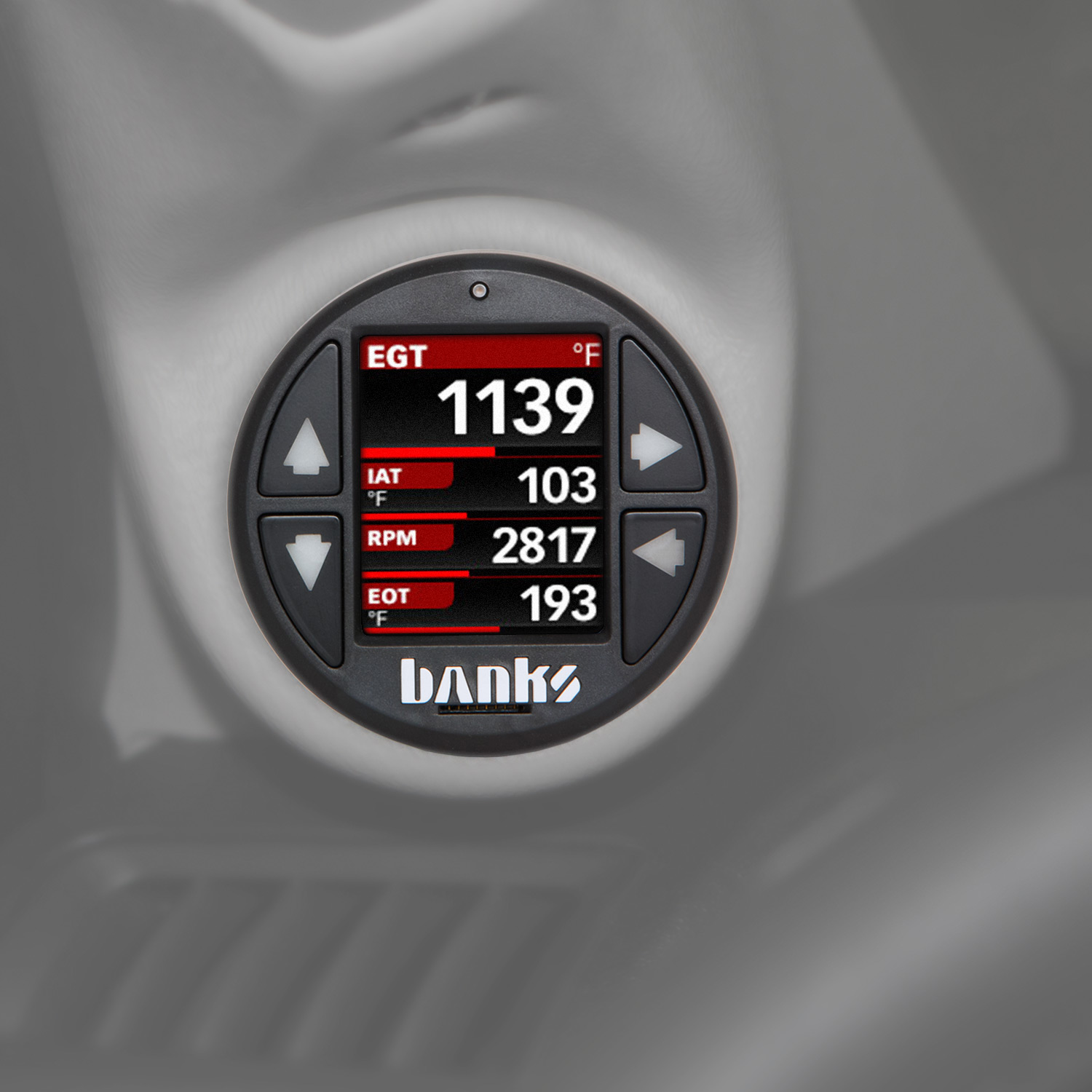

• Fits standard 52mm (2-1/16 inch) gauge mounts
• Features vary by application
• Kit designed to be used with a currently installed PedalMonster
• No OBD-II cable is included in this kit
• Gauge Mount NOT included

US Patent #7,593,808 B2 and #7,254,477 B1
