Crossover Weld-On High Steer Arms 99-04 Superduty Artec Industries

Title:
Crossover Weld-On High Steer Arms 99-04 Superduty Artec Industries
SKU:
HS6152-GNKQ
Brand:
Artec Industries
Category:
Steering Arms
Steering
Suspension / Steering / Brakes
$296.99

Horizontal Tabs

Description

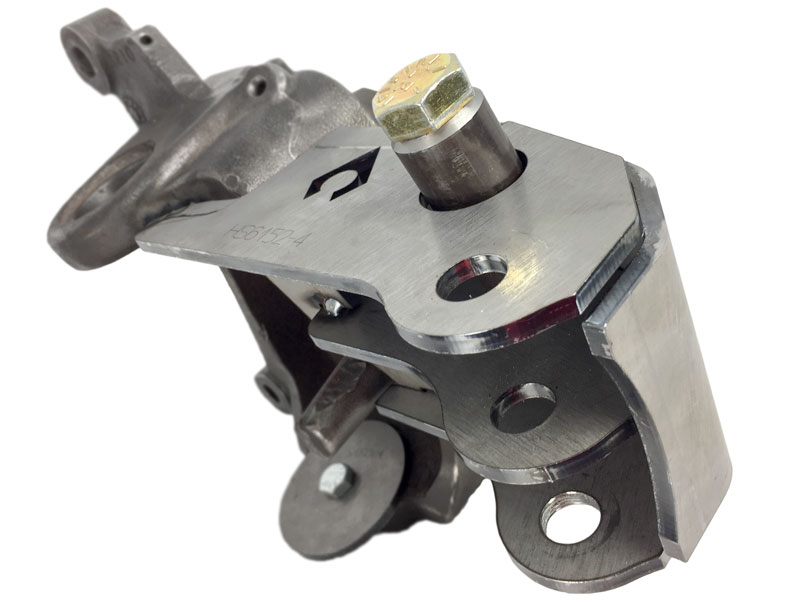

99-04 SuperDuty Knuckle Crossover Weld On High Steer Arms (Pair). Configurable and affordable weld on arms for the 99-04 SuperDuty Knuckles to help eliminate those swap steering issues. Provides 3 different variations to obtain the optimal steering set up for your rig.

  • Fully fabricated for the best steering geometry and clearances
  • Allows for straight tie rod - no bends - and clears even deep fabricated differential covers
  • Included Knuckle Bolts and tapered spacers for tight fit and increased strength
  • Welds directly to factory knuckles (1999 to 2004 SuperDuty)
  • 3/4 inch bolt holes for uncompromising steering strength
  • Precision Laser Cut from 1/4 inch steel and CNC Bent for accurate fitment
  • Minimal modification to OEM knuckle needed
  • Sold in pairs only. Includes knuckle bolt kits (8 inch long bolt, sleeve and stover locking nut) and all internal gusseting.
  • Rod end bolts not included because different lengths are needed depending on which holes you use.

Knuckle holes will need to be drilled out to 3/4 inch. Casting remnants on front of knuckle will need to be ground down. Knuckles from different years are slightly different from each other so we've etched a trim line on the laser cut part that will need to be trimmed off.
Requires welding and minor fabrication. We highly recommend this kit only be installed by a competent welder.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Installation
Packaging
Box Dimensions:
11 × 5 × 5 in
Box Weight:
18 lb
Fitment
Specs
Material:
Steel
Material:
Steel
